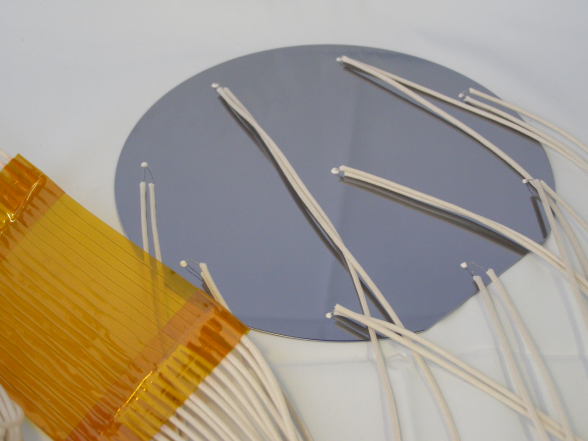

You supplied at least 2 substrates (depends on the material of substrate) and we do the rest.  The maximum 18 measurement points (K-type) on each substrate.  The maximum total thermocouple wires length of each is 3000 mm (included feed-thru, the portion in the vacuum and the portion in ATM). Our wire protection sleeve (high grade of glass fiber), the portion in the vacuum, can withstand continuously at 600℃ (for higher temperature available).  The material of feed-thru is DuPont™ Kapton® polyimide films, and the temperature can withstand up to 300℃.  The portion of wire protection sleeve is PTFE tubing in ATM, and finish up with miniature male connector. Paperless temperature recorder is available upon request!

Special made thermocouple for PV, LED, Semiconductor and FPD industries

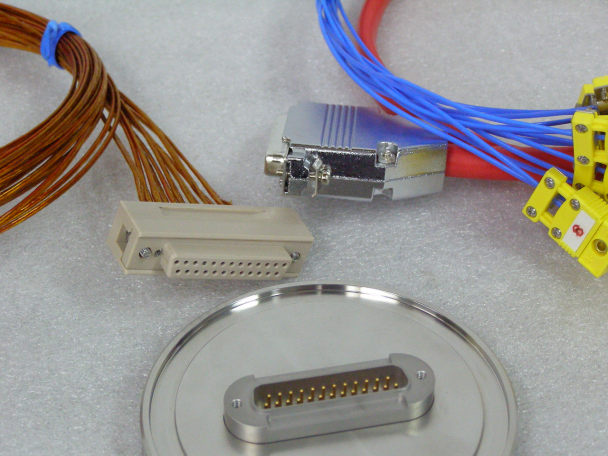

Vacuum side:

25 pins peek female D-sub with Kapton® insulation 9 pairs of K-type thermocouples

ISO100 flange welded male D-sub feedthrough for vacuum application

ATM side:

25 pins cast-iron female D-sub with PFA insulation 9 pairs of K-type thermocouples and miniature male plugs
